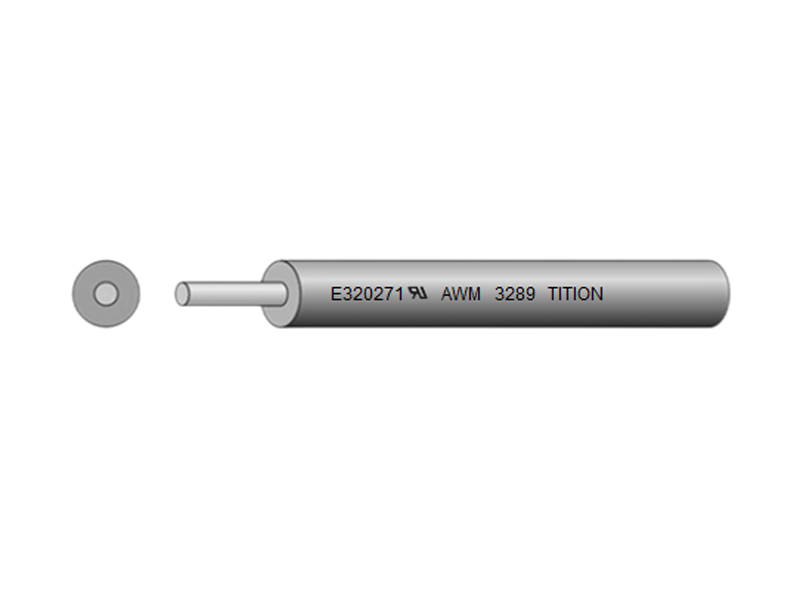

说明
额定温度：150℃
额定电压：600V
标准：UL758，，，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:交联聚乙烯
通过VW-1及CUL FT1笔直耐燃连线
环保要求：RoHS & REACH;
应用
用于电机引线或电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 2/0 | 1372/0.254 | 11.58 | 2.00 | 15.80 | 0.2766 | |
| 1/0 | 1045/0.254 | 10.12 | 2.00 | 14.40 | 0.3487 | |
| 2 | 665/0.254 | 8.16 | 1.50 | 11.40 | 0.5548 | |
| 4 | 420/0.254 | 6.47 | 1.50 | 9.00 | 0.882 | |
| 6 | 266/0.254 | 5.15 | 1.50 | 7.70 | 1.403 | |
| 8 | 168/0.254 | 4.10 | 1.14 | 6.60 | 2.23 | |
| 10 | 105/0.254 | 3.01 | 0.76 | 4.80 | 3.546 | |
| 12 | 65/0.254 | 2.37 | 0.76 | 4.10 | 5.64 | |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.60 | 8.96 | |
| 16 | 26/0.254 | 1.50 | 0.76 | 3.10 | 14.6 | |
| 18 | 41/0.16 | 1.18 | 0.76 | 2.80 | 23.2 | |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 | |
