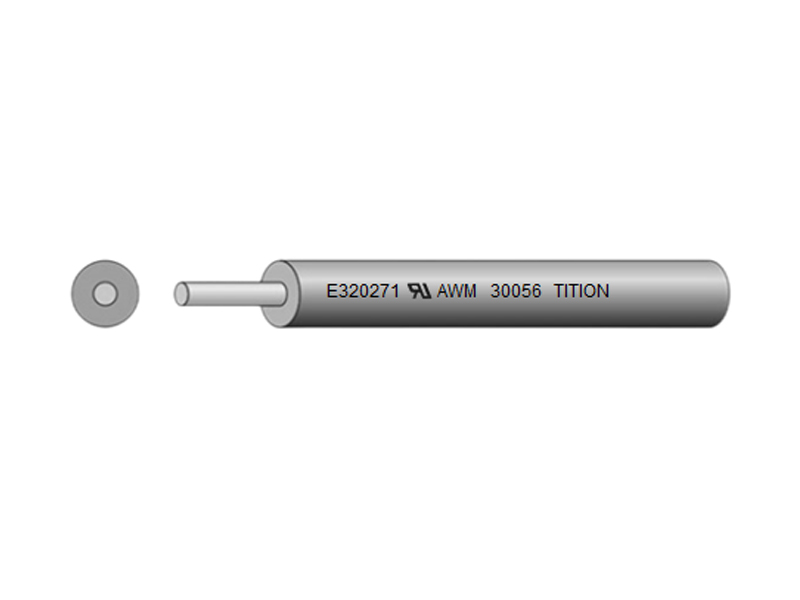

说明
额定温度：：：200℃
额定电压：：：3000V
标准：：：UL758，，，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:硅橡胶
通过VW-1及CUL FT1笔直耐燃连线
环保要求：：：RoHS & REACH;
应用
完全关闭的电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 2/0AWG | 1372/0.254 | 11.58 | 1.78 | 15.50 | 0.2766 | |
| 1/0AWG | 1045/0.254 | 10.12 | 1.78 | 14.20 | 0.3487 | |
| 2AWG | 665/0.254 | 8.16 | 1.78 | 12.20 | 0.5548 | |
| 4AWG | 420/0.254 | 6.47 | 1.78 | 10.40 | 0.882 | |
| 6AWG | 266/0.254 | 5.15 | 1.78 | 9.10 | 1.403 | |
| 7AWG | 208/0.254 | 4.58 | 1.78 | 8.50 | 1.768 | |
| 10AWG | 105/0.254 | 3.01 | 1.78 | 6.80 | 3.546 | |
| 12AWG | 65/0.254 | 2.37 | 0.76 | 4.10 | 5.64 | |
| 14AWG | 41/0.254 | 1.88 | 0.76 | 3.60 | 8.96 | |
| 16AWG | 26/0.254 | 1.50 | 0.76 | 3.15 | 14.60 | |
| 18AWG | 41/0.16 | 1.18 | 0.76 | 2.85 | 23.20 | |
| 20AWG | 26/0.16 | 0.94 | 0.76 | 2.60 | 36.70 | |
